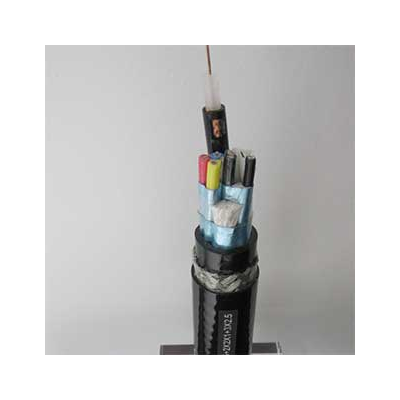

船 岸 连 接 电 缆
SHIP-TO-SHORE CONNECTION CABLES
用 途 Application |
适用于船舶停港口时接入岸上电源并向船 It is applicable to the power connection line connected 舶供电的电源连接线。 to the shore power supply and supplying power to the ship 取得CCS工厂（型式）认可证书 when the ship stops at the port. |
标准 | Standard |
IEC60092-350 | IEC60092-350 |
IEC60092-353 | IEC60092-353 |
IEC PAS 80005-3 | IEC PAS 80005-3 |
T/CAS 429 | T/CAS 429 |
型号Type | 名称Description |
ADEF(CADEFR)/DA/SA | 乙丙绝缘氯丁橡胶护套船岸连接电缆，DA/SA型 EPR insulated PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA |
ADEXF(CADEXFR)/DA/SA | 乙丙绝缘纤维编织加强层氯丁橡胶护套船岸连接电缆，DA/SA型 EPR insulated fiber braided reinforcement PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA |
ADEU(CADEUR)/DA/SA | 乙丙绝缘聚氨脂护套船岸连接电缆，DA/SA型 EPR insulated TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA |
ADEXU(CADEXUR)/DA/SA | 乙丙绝缘纤维编织加强层聚氨脂护套船岸连接电缆，DA/SA型 EPR insulated fiber braided reinforcement TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA |
船岸连接电缆 电压等级：0.6/1kV 90℃ | |||||||
芯数×动力线芯 标称截面 No.Of core×nominal cross sectional area of power core (mm2) | 芯数×地线芯标 称截面 No.Of core×nominal cross sectional area of ground wire core(mm2) | 芯数×监视线芯 标称截面 No.Of core×nominal cross sectional area of monitoring core (mm2) | 电缆最大外径Max.acceptable cable overall diameter | 参考重量 Reference weight | |||
U | F | U | F | ||||

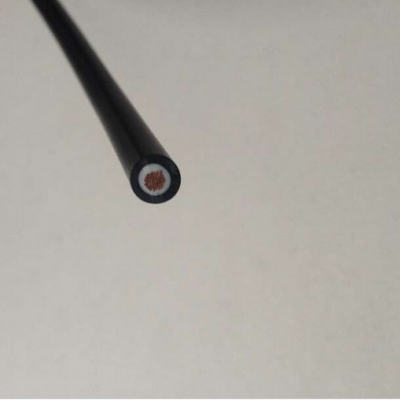

1×70 | - | - | 20.9 | 22.8 | 1066 | 1170 | |
1×95 | - | 23.2 | 25.6 | 1406 | 1552 | ||
1×120 | - | 25.4 | 28.1 | 1712 | 1887 | ||
1×150 | - | 28.1 | 30.7 | 2090 | 2282 | ||
1×185 | - | 30.8 | 33.7 | 2523 | 2756 | ||
1×240 | - | 34.7 | 38.0 | 3309 | 3617 | ||
3×25 | 1×16 | 2×2×1.5 2×2×2.5 1×2×1.5 1×2×2.5 3~9×1.5 3~9×2.5 | 30.6 | 33.8 | 1853 | 2078 | |
3×35 | 1×35 | 34.6 | 37.9 | 2563 | 2863 | ||
3×50 | 1×50 | 40.6 | 44.4 | 3643 | 4048 | ||
3×70 | 1×50 | 44.8 | 49.1 | 4462 | 4962 | ||
3×95 | 1×50 | 49.2 | 54.0 | 5663 | 6280 | ||
3×120 | 1×70 | 54.6 | 59.9 | 6994 | 7741 | ||
3×150 | 1×95 | 60.8 | 66.6 | 8714 | 9620 | ||
3×185 | 1×95 | 65.6 | 72.1 | 10235 | 11352 | ||
3×240 | 1×120 | 74.2 | 81.4 | 13382 | 14789 | ||
产品主要性能 | Main performance |
具有耐阻燃、日光老化、耐磨、抗撕、耐盐雾、耐循环弯曲（满足IEC80005.1规定的5000次卷绕试验）及优良的电性能（耐压测试3.5KV/5min）。 | flame resistance, sun aging, wear resistance, tear resistance, salt spray resistance, cyclic bending (meet IEC80005.1 provisions of 5000 winding test) and excellent electrical performance (pressure test 3.5kV /5min). |
产品使用特性 | Product features |
额定电压 U0/U 为0.6/1KV ; 最低工作温度（静态）为-40℃；导体允许长期最高工作温度为90℃；最大短路时间为5S时导体最高工作温度不超过250℃；电缆最小弯曲半径（静态）为电缆外径D的6倍。 | Rated voltage U0/U is 0.6/1kV; The lowest operating temperature (static) is -40℃; The maximum allowable long-term operating temperature of the conductor is 90℃; When the maximum short-circuit time is 5S, the maximum operating temperature of the conductor shall not exceed 250℃; The minimum bending radius (static) of the cable is 6 times of the cable diameter D. |
